Accucold 23 Cu.Ft. Upright Pharmacy Refrigerator - ARS23ML
Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications.

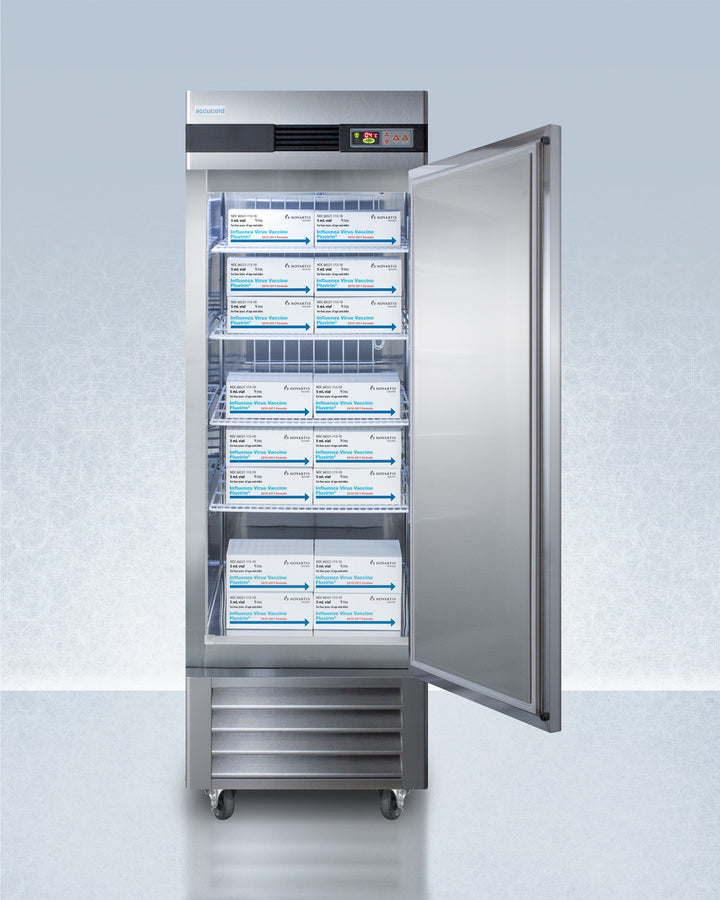

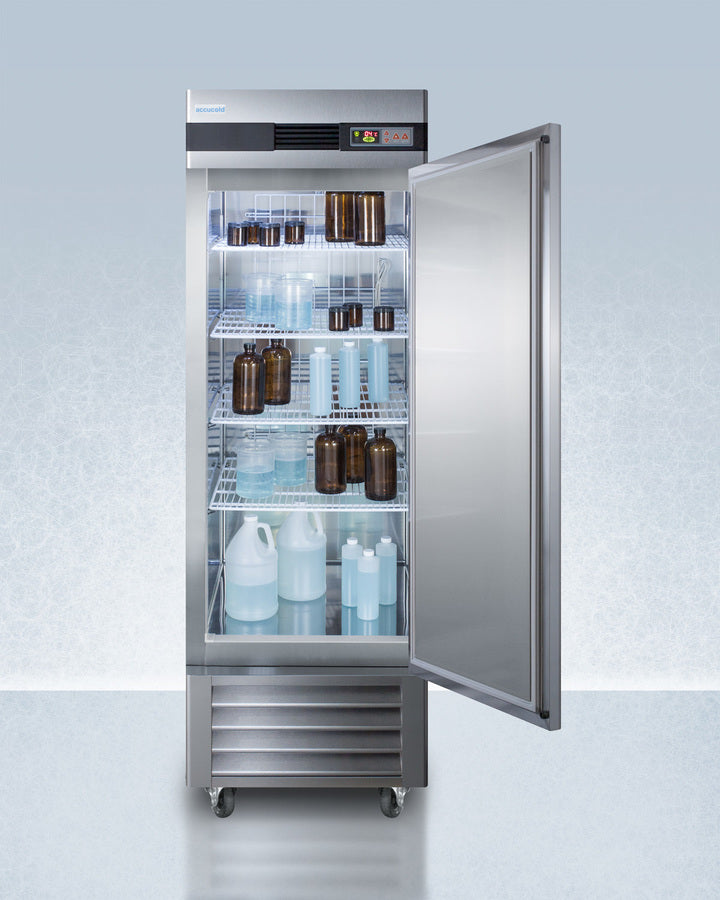

The ARS23ML is a 23 cu.ft. all-refrigerator with an adjustable control range from +2 to +10ºC. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature.
The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.
Inside, the ARS23ML utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display.
The ARS23ML features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90º for easier loading.
Designed with hydrocarbon refrigerant, the ARS23ML provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching frost-free freezer, see the ARF23ML. A glass door refrigerator version is also available (model ARG23ML).
Features
- Purpose-built design: Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
- Adjustable temperature: Interior is pre-set to 5ºC, with an adjustable control range from 2 to 10ºC
- Temperature alarm: Visual and audible alarms alert if the interior temperature rises or falls out of set range
- Complete stainless steel construction: Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup

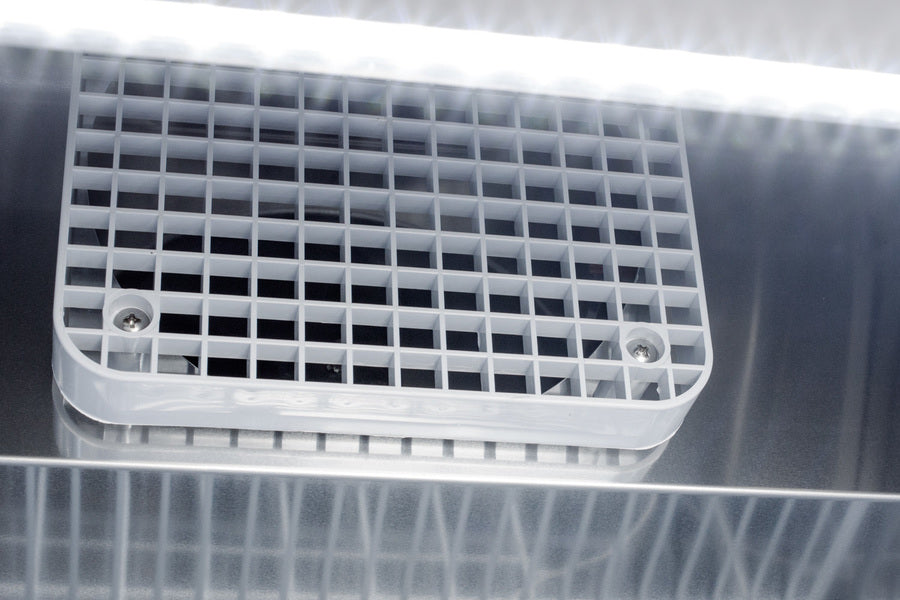

- Forced air cooling: Top-mounted commercial fan ensures rapid temperature recovery
- Automatic defrost with adjustable cycle defrost: Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
- Self-closing door: Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading
- Open door alarm: Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes
- 6 inch casters: Ships with a set of casters (2 locking) for optional user installation
- Microprocessor control panel: Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
- Min/max display: Control panel provides a readout of the low and high temperatures in 15 minute increments
- Factory-installed lock: Keyed lock conveniently located towards the top of the door for added security (2 keys included)

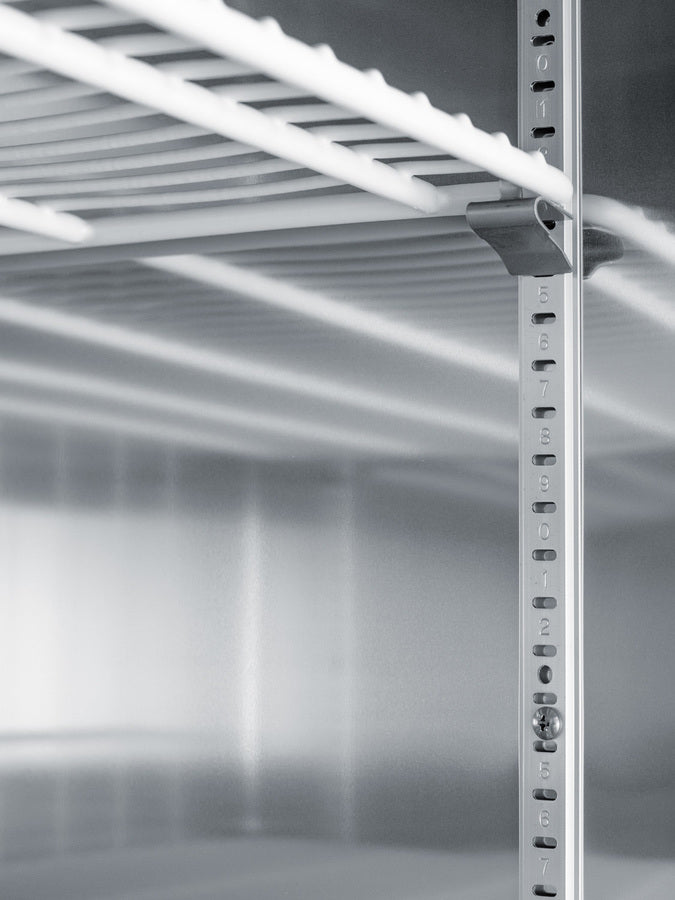

- Adjustable plastic-coated wire shelves for improved circulation: Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items
- Interior light: Energy efficient LED lighting with internal on/off switch
- Large capacity: 23 cubic feet of storage space inside
- Sealed back: Space-saving design that ensures easier cleanup
- Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
- Condenser cleaning alarm: In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months
- Matching freezer: Pair with AFS23ML for a matching set in complete stainless steel
- Extended warranty: 2 years parts and labor/5 years compressor
- Commercially approved: Commercial construction meeting UL commercial listing standards
- Eco-Friendly: Using environmentally friendly hydrocarbons refrigerants for a greener footprint
- Additional choices: Glass door version (model ARG23ML) available for pharmacy, medical, laboratory, and additional applications
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 83.75" (213 cm)
- Width: 27.5" (70 cm)
- Depth: 31.0" (79 cm)
- Depth with Handle: 32.75" (83 cm)
- Depth with door at 90°: 56.5" (144 cm)
- Capacity: 23.0 cu.ft. (651 L)
- Defrost Type: Automatic
- Door: Stainless Steel
- Cabinet: Stainless Steel
- US Electrical Safety: UL
- Canadian Electrical Safety: ULC
- Sanitation: ETL-S
- Amps: 7.5
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 282.0 lbs. (128 kg)
- Shipping Weight: 292.0 lbs. (132 kg)
- Parts & Labor Warranty: 2 Years
- Compressor Warranty: 5 Years
- UPC: 761101062297
Refrigerator Features
- Door Swing: RHD
- Reversible: No
- Shelf Type: Wire
- Shelf Qty: 4
- Adjustable Shelves: Yes
- Thermostat Type: Digital
- Fan Type: Interior
- Refrigerant Type: R290a
- Refrigerant Amount: 2.5oz.
- High Side PSI: 290.0
- Low Side PSI: 155.0
- Wheel Qty: 4
- Interior Light: Yes
- Temperature Range: 2 to 10ºC
Dimensions
- Interior Height: 51.5" (131 cm)
- Interior Width: 23.5" (60 cm)
- Interior Depth: 27.0" (69 cm)
Available Upgrades
Exterior
- Extra key
- PHRI: Probe Hole
- DL2B: Factory installed NIST calibrated digital data logger (DDL)
