Accucold 24 Inch ADA Compliant Built-In All Freezer - Commercial & Medical Use, Perfect for Restaurants, Labs & ADA Compliant Spaces

Accucold 24" Wide Built-In All-Freezer, ADA Compliant - VT65MLBIMED2ADA

Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions.

The VT65MLBIMED2ADA is an all-freezer sized in a convenient 24" footprint and 32" height. The front breathing design allows built-in installation under lower ADA compliant counters, while the fully finished cabinet in white also enables freestanding use. This unit is designed with an external front control panel that allows users to adjust and monitor the temperature without opening the door or bending down to the floor. The front keyed lock is located towards the top of the door for added convenience. A hospital grade 'green dot' cord offers added safety in high traffic environments.

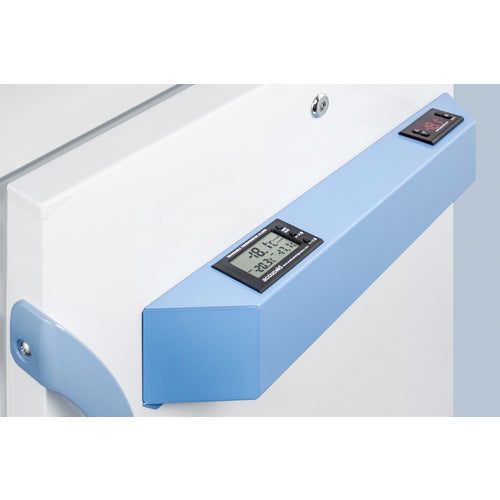

As recommended by the CDC and VFC programs, the VT65MLBIMED2ADA is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each VT65MLBIMED2ADA ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment.

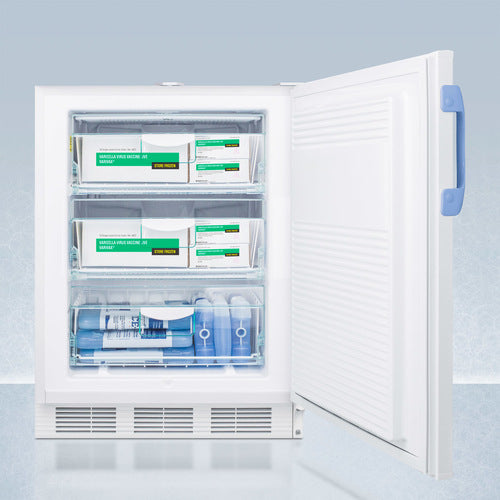

The VT65MLBIMED2ADA features a 3.2 cu.ft. interior capacity and extra thick walls for reliable insulation. Slide-out baskets with clear plastic fronts allow users to view stored contents without exposing them to room temperature every time the door is opened. This low temperature freezer is designed to operate between -20ºC to -30ºC, an ideal temperature for certain vaccines, samples, and other sensitive medical materials. It has a flat door liner as recommended by the CDC.

All MED2 series units are assembled in the USA from domestic and imported components. The VT65MLBIMED2ADA can be paired with a matching all-refrigerator (FF7LBIMED2ADA). This unit can also be customized with additional features, including a self-closing door or USB temperature logger with a digital display. Contact our product specialists to learn more. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Features

• Reliable temperature stability: Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
• ADA compliant design: 32" height allows installation under lower ADA compliant counters
• Built-in capable: Front-breathing design allows built-in installation under counters
• -25º C/-13º F capable: Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
• Digital thermostat: Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience
• High/low temperature alarm: Audible alarm sounds if the interior temperature rises or falls out of set range
• NIST calibrated temperature display: Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
• Buffered temperature probe: Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
• Factory installed lock: Keyed lock conveniently located towards the top of the door for added security (2 keys included)
• Manual defrost: Static cooling system for reduced temperature fluctuations
• Hospital grade cord and plug: Secure three-pronged cord for added unit safety
• 3/8" access port: Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

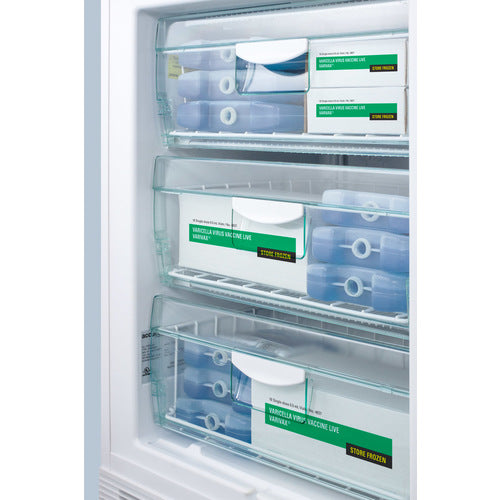

• Three slide-out drawers: Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open
• Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
• Fully finished white cabinet: Allows the unit to be used freestanding
• Foamed-in-place cabinet: Quality design ensures efficiently insulated interior
• Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
• Matching refrigerator available: Pair with the FF7LBIMED2 to create a complete set
• Factory reversible door: Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
• Extended warranty: This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
• Approved for use in the USA and Canada: ETL and ETL-C listed for North American sales
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals

Specifications

Overview

• Height of Cabinet: 32.0" (81 cm)
• Height to Hinge Cap: 32.38" (82 cm)
• Width: 23.63" (60 cm)
• Depth: 23.63" (60 cm)
• Depth with Handle: 25.0" (64 cm)
• Depth with door at 90°: 45.75" (116 cm)
• Capacity: 3.2 cu.ft. (91 L)
• Defrost Type: Manual
• Door: White
• Cabinet: White
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Amps: 1.3
• Weight: 105.0 lbs. (48 kg)
• Shipping Weight: 110.0 lbs. (50 kg)
• Parts & Labor Warranty: 2 Years
• Compressor Warranty: 5 Years
• UPC: 761101056548

Freezer

• Door Swing: RHD
• Reversible Factory: Reversible
• Interior Height: 24.25" (62 cm)
• Interior Width: 17.75" (45 cm)
• Interior Depth: 16.5" (42 cm)
• Thermostat Type: Digital
• Fan Type: Exterior
• Refrigerant Type: R134a
• Refrigerant Amount: 2.76 oz.
• High Side PSI: 235.0
• Low Side PSI: 88.0
• Level Legs: 4
• Interior Drawers: Yes
• Drawers Qty: 3
• Compressor Step Height: 6.0" (15 cm)
• Compressor Step Width: 17.75" (45 cm)
• Compressor Step Depth: 6.0" (15 cm)
• Temperature Range: -12ºC to -25ºC

Available Upgrades

Exterior

• SCD - Self-closing door
• SSK - Stainless steel kickplate
• Latch - Factory-installed door latch requires manual release to open unit
• LHD - Left hand door swing
• ODA - Open door alarm
• Extra key
• DTMEDF - Digital thermostat with Fahrenheit readout
• DL2B - Factory installed NIST calibrated digital data logger (DDL)

Handle

• TBC Copper Towel Bar Handle
• CP Full-Length Copper Pipe Handle

Door

• STO-Step-To-Open Door Pedal
