Accucold 24 Inch Wide Built-In All Freezer ADA Compliant ACF48WSSHVADA - Perfect for Restaurants, Commercial Kitchens & ADA Accessible Spaces

Accucold 24" Wide Built-In All-Freezer ADA Compliant - ACF48WSSHVADA

Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter.

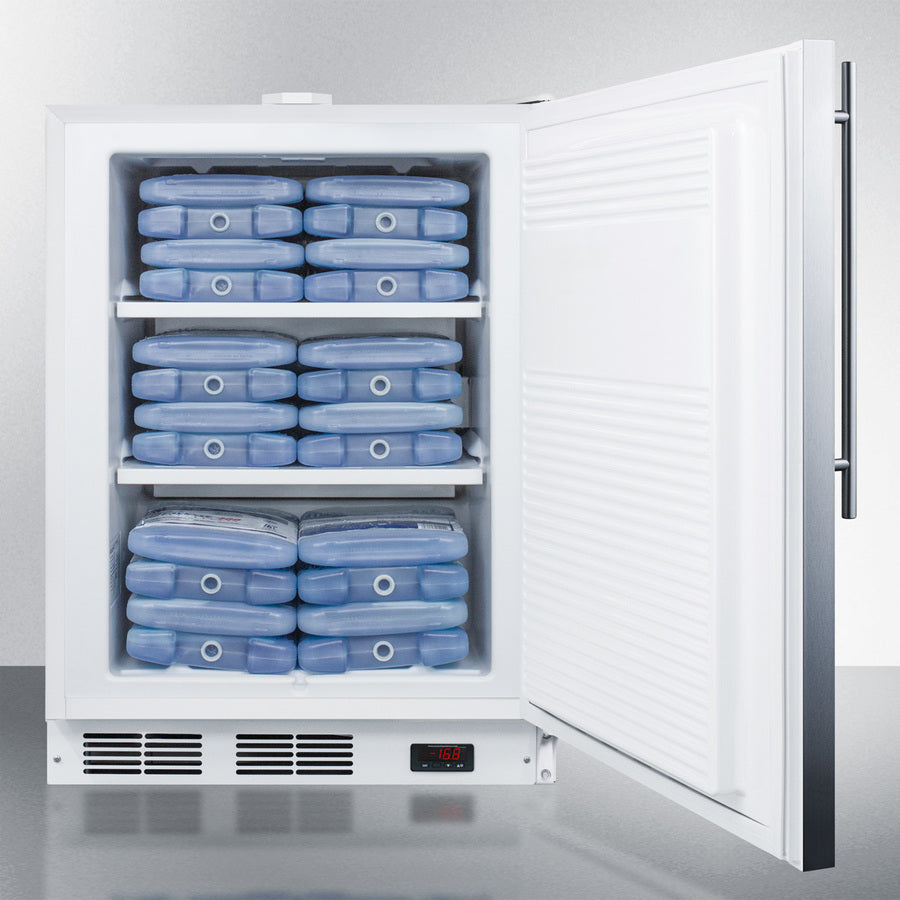

At 24" wide and 32" high, the ACF48WSSHVADA is ideally sized for various institutional settings with ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The user-reversible door includes a factory installed keyed lock for added security.

This model comes with a white cabinet and stainless steel wrapped door with a thin pro style handle. It includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas.

Full frost-free operation ensures low maintenance operation, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kick-plate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves.

Made in the USA, the ACF48WSSHVADA offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471.

Features

• ADA compliant: 32" height is designed to fit under lower ADA compliant counters
• Slim under-counter dimensions: Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
• Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinetry
• Frost-free operation: Low maintenance design ensures no frost buildup inside the unit
• Digital temperature control: Electronic controls located in the exterior kick-plate for precise temperature management
• Stainless steel wrapped door: Durable design with easy clean-ability
• Professional stainless steel handle: Thin 14mm diameter on stainless steel handle, mounted vertically for a sleek look
• Factory installed lock: Keyed lock for added security, located towards the top of the door to ensure convenient access
• Removable shelves: Includes two slide-out shelves made from durable steel
• Internal fan: Fan-forced cooling ensures the unit is evenly cooled from top to bottom
• Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
• Hospital grade cord: Secure three-pronged cord for added unit safety
• Fully finished white cabinet: Allows the unit to be used freestanding
• Matching refrigerator available: Pair with the FF7LBISSHVADA to create a matching set
• Foamed-in-place cabinet: Quality design ensures efficiently insulated interior
• Commercially approved: Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
• 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals

Specifications

Overview

• Height of Cabinet: 32.0" (81 cm)
• Height to Hinge Cap: 32.25" (82 cm)
• Width: 23.63" (60 cm)
• Depth: 23.5" (60 cm)
• Capacity: 3.1 cu.ft. (88 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel
• Cabinet: White
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 1.5
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 110.0 lbs. (50 kg)
• Shipping Weight: 115.0 lbs. (52 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101052427

Freezer

• Door Swing: RHD
• Reversible: Factory Reversible
• Shelf Type: Steel
• Shelf Qty: 2
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R134a
• Refrigerant Amount: 4.2 oz.
• High Side PSI: 285.0
• Low Side PSI: 70.0
• Level Legs: 4
• Temperature Range: -5 to 10ºF/-20 to -12ºC

Available Upgrades

Exterior

• Agion Cabinet
• Agion Door
• LHD: Left hand door swing
• ODA: Open door alarm
• SCD: Self-closing door
• PH: Probe Hole
• Alarm
• Latch for door
• Extra key
• SSK
• DL2B: Factory installed NIST calibrated digital data logger (DDL)

Lock

• AC Keypad
• KEYPAD

Handle

• TBC Copper Towel Bar Handle Upgrade

Door

• STO: Step-To-Open Door Pedal
